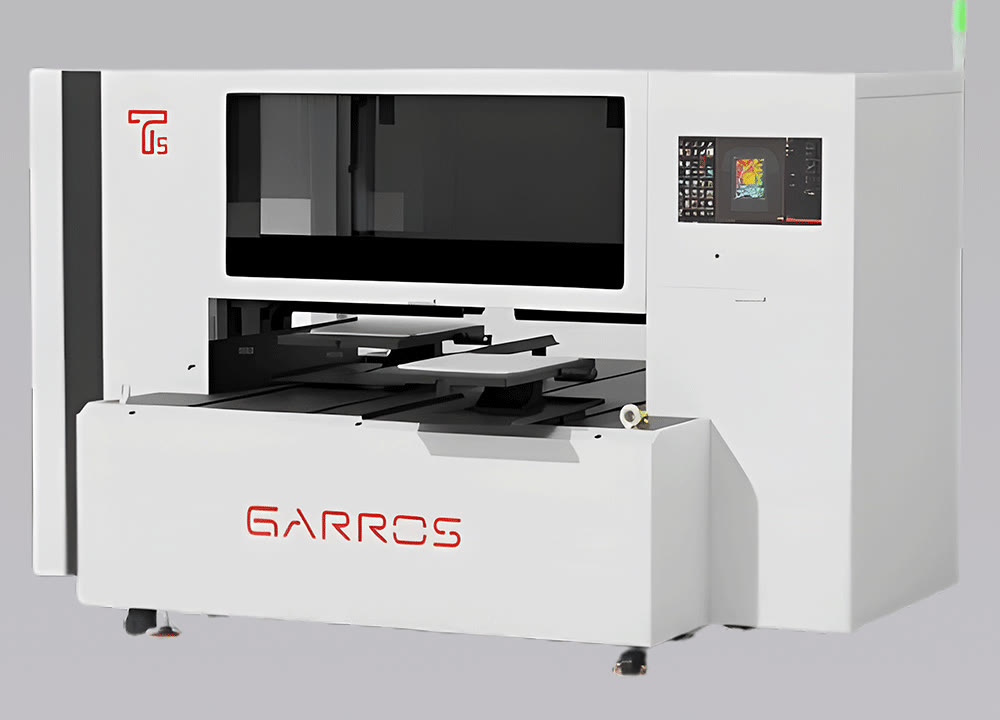

A next-generation direct-to-garment printing system designed to combine color printing, white ink and pretreatment into one integrated production workflow.
With its dual-beam, dual-carriage architecture, industrial-grade printheads and automated ink-management systems, Garros T5 Pro is engineered for demanding production environments where speed, consistency and print quality matter.

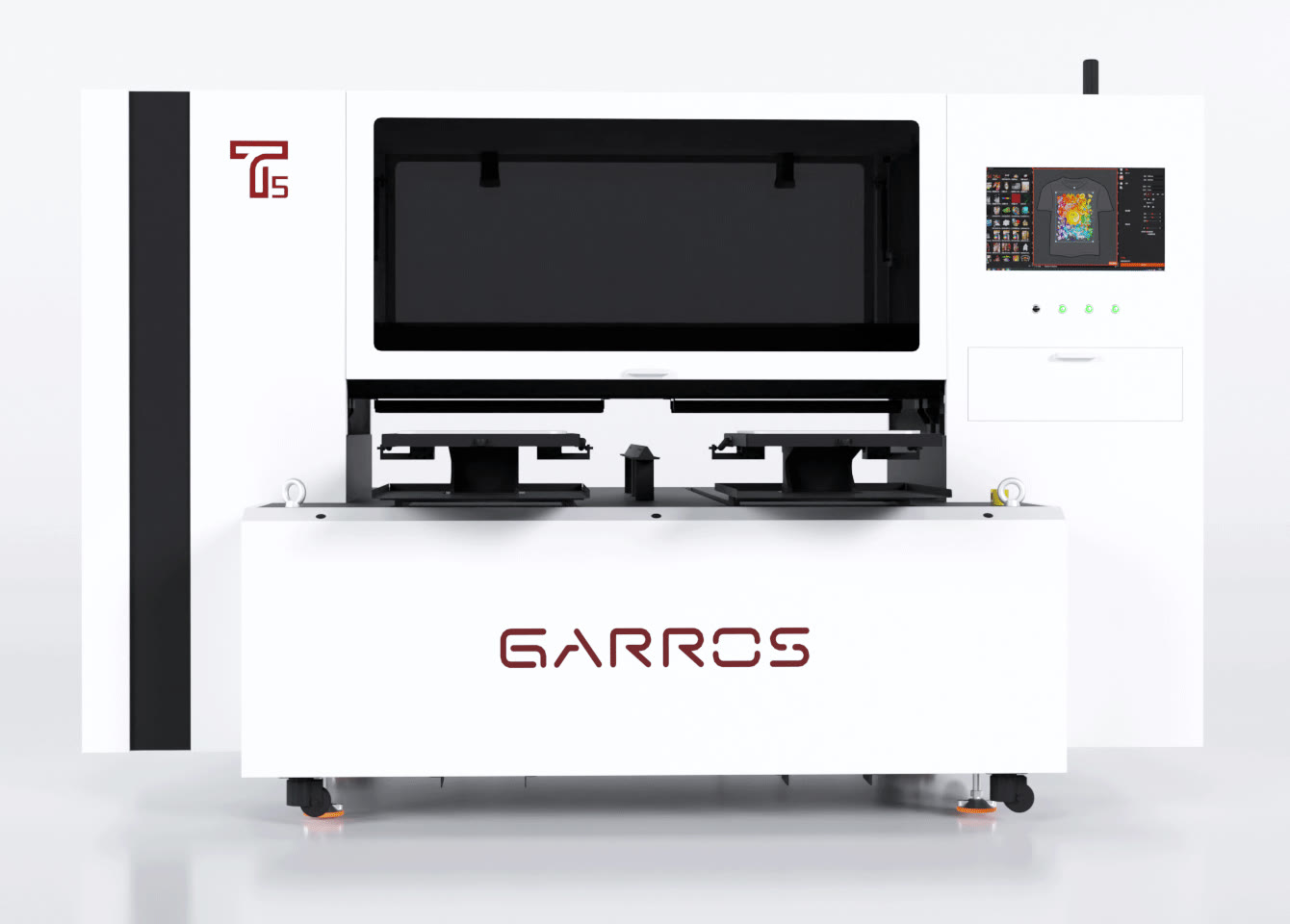

Pretreatment is integrated directly into the printing workflow, eliminating the need for a separate pretreatment stage and helping create a more streamlined production process.
Color, white ink and treatment fluid are handled within a single machine, reducing unnecessary handling between production steps.

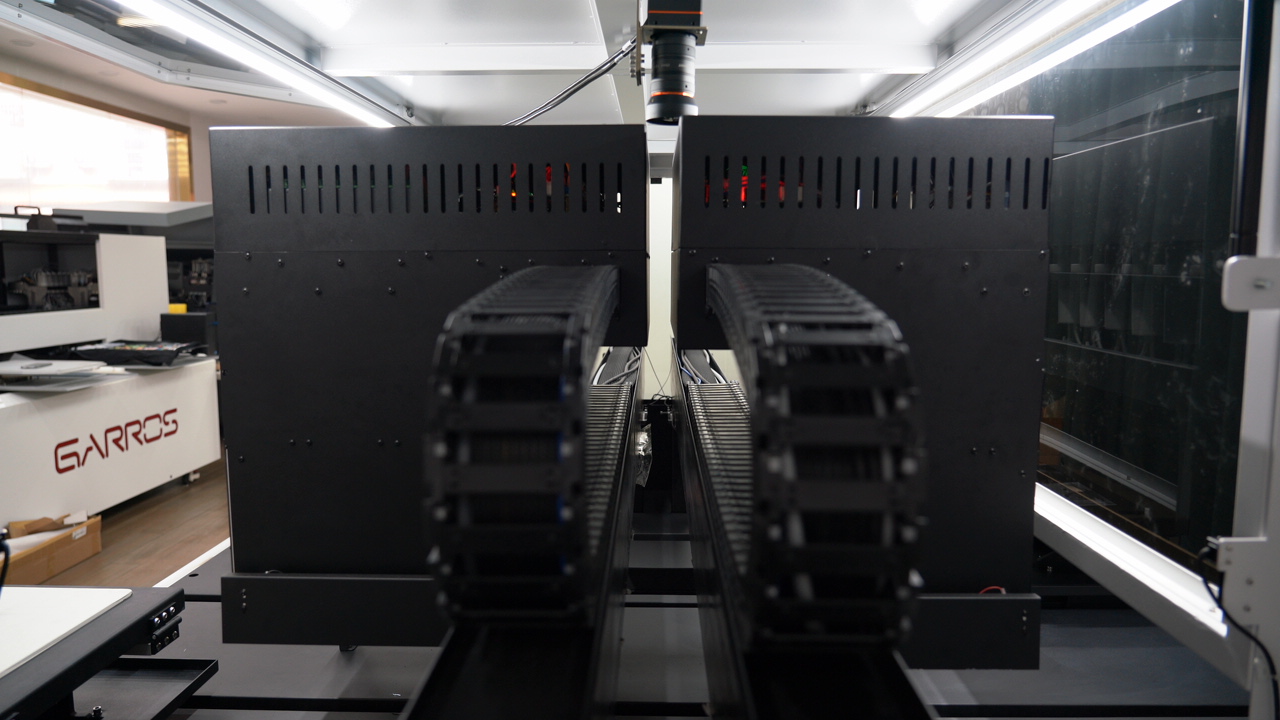

T5 Pro uses a dual-beam, dual-carriage motion control system designed for efficient, high-volume garment production.
This architecture enables the machine to manage multiple printing processes within a highly coordinated workflow, increasing production efficiency while maintaining consistency.
Garros T5 Pro uses an extended color configuration. The expanded 8-color system is designed to deliver a wider color gamut, stronger color reproduction and increased flexibility compared with standard CMYK workflows.
This system can reproduce more than 30 million colors, giving print providers greater freedom when producing detailed, color-critical artwork.
T5 Pro is equipped with 10-12 industrial-grade Japanese printheads designed specifically for pigment printing. Ultra-fine 4pL ink droplets help reproduce fine image detail while achieving high color saturation. This combination is intended to provide accurate output across both detailed graphics and high-density garment prints.
Garros T5 Pro is built around real production throughput rather than purely theoretical print speeds.
CMYKRGBO / W / PretreatmentThese figures are listed by the manufacturer as Actual Production Capacity.
The T5 Pro is designed around what Garros describes as a new wet-printing workflow. Instead of treating pretreatment, white ink and color printing as separate production processes, the machine brings them together within a single system. This helps simplify the garment-printing workflow while reducing unnecessary manual steps between processes.
Production consistency depends not only on the printheads, but also on how ink is supplied and maintained. The T5 Pro incorporates several dedicated ink-management systems:
Designed to maintain stable ink delivery during printing.
Supports consistent ink flow while reducing air within the ink-delivery system.
Automates essential maintenance routines and helps reduce manual intervention.
Provides controlled operating conditions for more stable printing performance.
The machine uses Variable Ink Droplet Printing Technology together with water-based pigment inks. Ultra-fine 4pL droplets allow the print system to reproduce detailed artwork while maintaining strong color saturation. The manufacturer also specifies the use of imported Schneider Electric components to improve machine stability.
The standard table size is 400 x 480 mm while the maximum table size is 650 x 750 mm. This allows the T5 Pro machine to accommodate different garment sizes and production requirements.
Garros T5 Pro supports printing on:
Its water-based pigment ink system is designed specifically for textile applications and garment production.
Each ink channel is specified with a 2000ml ink supply capacity per color. The increased ink capacity is suited to continuous production environments where reducing interruptions for refilling is important.
| Specification | Garros T5 Pro |
|---|---|
| Product Model | Garros T5 Pro |
| Print Technology | Variable Ink Droplet Printing Technology |
| Printheads | 10-12 Industrial-Grade Japanese Printheads |
| Ink Droplet Size | 4pL |
| Standard Printing Area | 400 x 480 mm |
| Maximum Printing Area | 650 x 750 mm |
| Ink Type | Water-Based Pigment Ink |
| Color Configuration | CMYKORGB + WHITE + PRETREATMENT |
| Ink Supply Volume | 2000ml / each color |
| Supported Media | Cotton, Linen and Various Blended Fabrics |
| Operating Humidity | 55 % - 80 % |
| Operating Temperature | 20 ℃ - 30 ℃ |
| Operating System | Windows 10 / Windows 7 |
| Display | Human-Machine Interface |
| Image Formats | PNG / JPG / TIFF |
| Network Interface | 1000Mbps Ethernet |

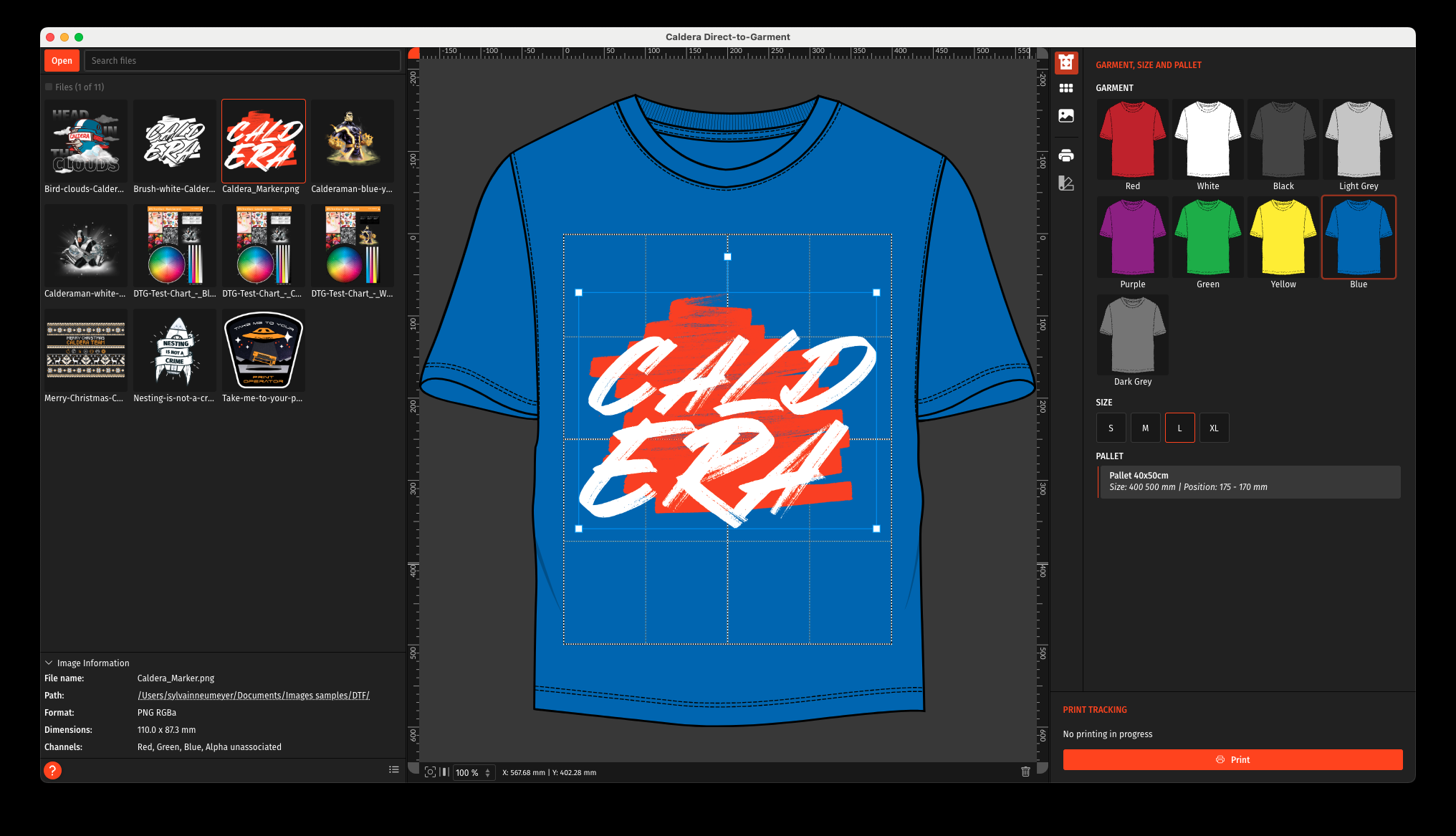

| RIP Software | Garros RIP |
| Interface Language | Chinese / English |
| Power Supply | AC 110/220 V, 50/60Hz |
| Noise Level | 60 dB |
| Machine Dimensions | 2930 x 2237 x 1795 mm |
| Machine Weight | 1200 kg |
| Package Dimensions | 3018 x 2320 x 2261 mm |
| Package Weight | 1500 kg |
Discover how the Garros T5 Pro can help streamline your garment-printing workflow, expand your production capacity and bring color, white ink and pretreatment together in one integrated system.
